Ask five engineers in a steel plant how to structure the asset register and you'll get five different answers, which is exactly why most CMMS rollouts end up with a blast furnace logged as one giant asset and a rolling mill broken into forty inconsistent line items. A clean five-level hierarchy fixes that before data entry starts, giving every unit from ironmaking to utilities the same structure to follow. This free template maps that structure out, level by level. Sign up to load it directly into OxMaint for your plant.
Why Structure Matters
Without a consistent hierarchy, the same rolling mill gets logged three different ways across three shifts, work orders attach to the wrong level, and failure history never rolls up cleanly to the equipment that actually keeps breaking. A fixed five-level structure means every asset, from a blast furnace to a single roll bearing, has one correct place to live.

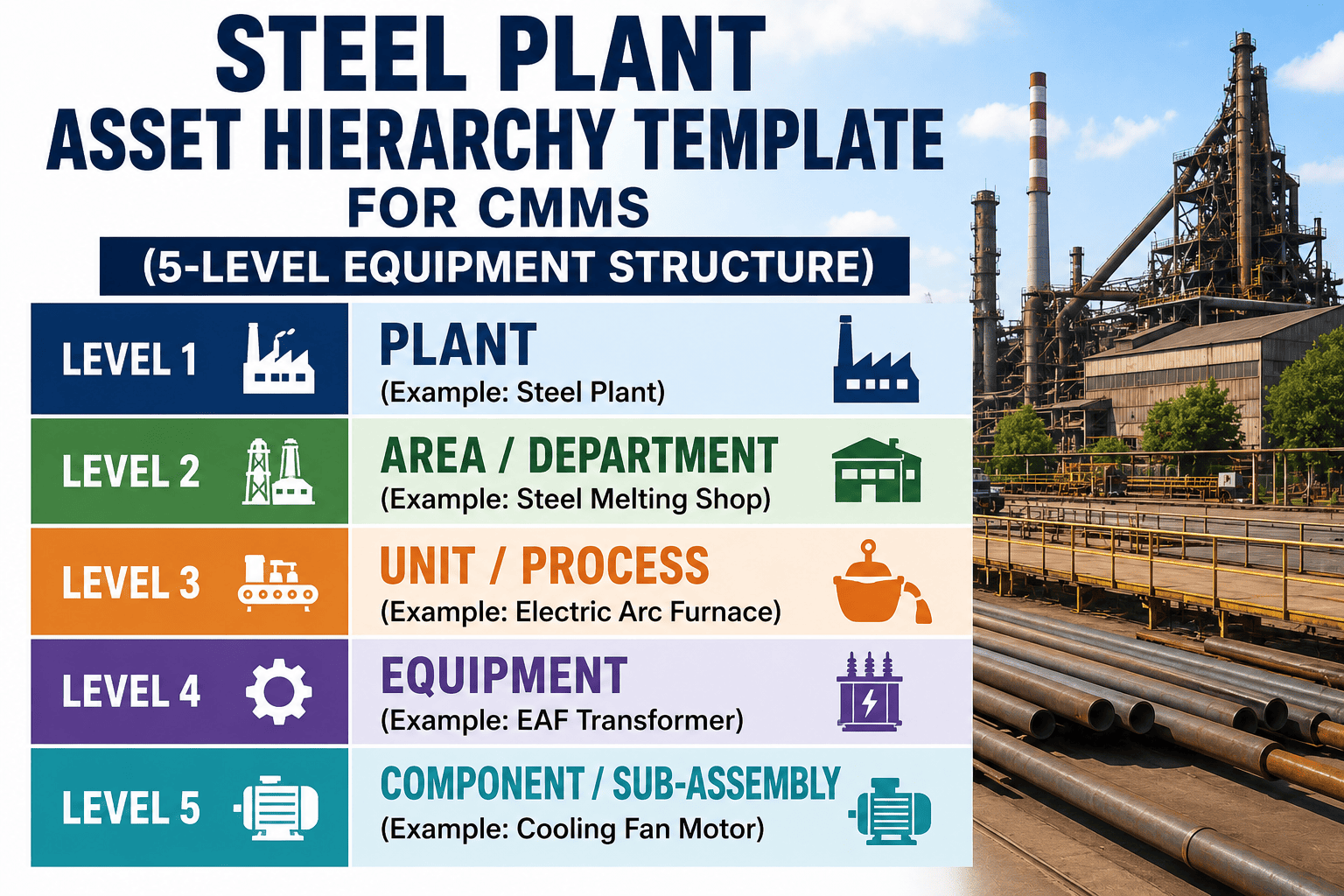

The 5-Level Structure
Level 1 · Plant
Steel Plant, e.g. Integrated Steel Works Unit 2
Level 2 · Functional Area
Ironmaking, Steelmaking, Rolling, Utilities
Level 3 · Production Line / Unit
Blast Furnace 1, BOF Shop, EAF 2, Hot Strip Mill
Level 4 · Equipment
Furnace Shell, Oxygen Lance, Electrode Arm, Roughing Stand
Level 5 · Component
Tuyere, Lance Nozzle, Electrode Tip, Roll Bearing
Mapped Across Your Plant's Assets
Blast Furnace
Ironmaking → BF-1 → Furnace Shell → Tuyere, Cooling Stave, Tap Hole
BOF Shop
Steelmaking → BOF-2 → Oxygen Lance → Lance Nozzle, Lifting Cable
Electric Arc Furnace
Steelmaking → EAF-1 → Electrode Arm → Electrode Tip, Clamp Assembly
Rolling Mills
Rolling → Hot Strip Mill → Roughing Stand → Roll Bearing, Hydraulic Cylinder
Utilities
Utilities → Compressor House → Air Compressor → Intake Filter, Drive Motor
Production Assets
Rolling → Finishing Line → Coiler → Wrapper Belt, Tension Reel
Flat Asset List vs This Template
| Area |
Flat Asset List |
5-Level Hierarchy |
| Naming |
Inconsistent across shifts and departments |
One naming convention from plant down to component |
| Work order placement |
Logged against whatever asset entry happens to exist |
Attached at the exact equipment or component level |
| Failure history |
Scattered, hard to roll up to the parent equipment |
Rolls up cleanly from component to line to plant |
| Reporting |
Manual reconciliation before any plant-wide KPI |
Filter and compare any level instantly, no cleanup needed |
Build Your Asset Register Right The First Time
OxMaint comes pre-structured for the five-level hierarchy, so every furnace, mill, and utility asset has one correct place to live. Sign up for a free trial to map your plant's assets today, or book a demo and we'll help you structure it together.
Frequently Asked Questions
Q
Why five levels instead of a simpler three-level structure?
Three levels are fine for small facilities, but a steel plant needs the extra depth to separate individual equipment from the components that actually fail, like a lance nozzle inside an oxygen lance inside a BOF vessel.
Q
Is this structure aligned with ISO 55001?
Yes, the plant-to-component breakdown follows the same functional location logic ISO 55001 asset management systems expect, which makes audits and certification reviews easier to pass.
Q
Can we adjust the template if our plant doesn't run every unit shown?
Yes, the five-level logic stays the same, you simply swap in the functional areas and lines your plant actually runs, whether that's just an EAF shop or a full integrated works.
